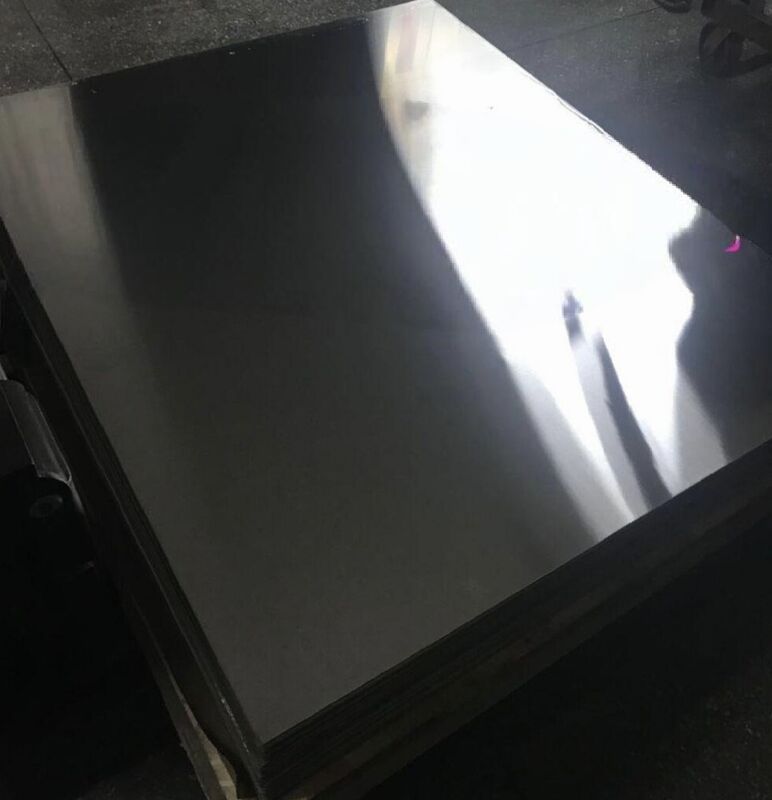

PCB & CCL Dura420 Ultra-Stable High-Precision Lamination Press Plate ESSP-D420 Long Service Life, Corrosion Resistant German Steel Plate for Circuit Board & Copper Clad Laminate Lamination
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | MK |
| 모델 번호: | MKSP-D420 |
결제 및 배송 조건:
| 최소 주문 수량: | 50개 |
|---|---|
| 가격: | negotiable |
| 포장 세부 사항: | 내부에 적절한 부드러운 보호 재료가 포함된 견고한 합판 패키지로 해상 또는 항공 운송을 위한 장거리 운송에 적합합니다. |
| 배달 시간: | 10-20 영업일 |
| 지불 조건: | L/C, D/A, D/P, T/T, 서부 동맹 |
| 공급 능력: | 한 달에 10000 평방 미터 |
|
상세 정보 |
|||
| 원료: | 프리미엄 수입 독일 Dura420 스테인레스 스틸 | 서비스 수명: | 최대 5~8년의 매우 긴 서비스 수명 |
|---|---|---|---|
| 특징: | 경도가 높고 내식성이 우수함 | 표준두께(mm): | 1.0, 1.2, 1.5, 1.6, 1.8, 2.0 |
| 제품명: | PCB 및 CCL Dura420 라미네이션 프레스 플레이트 | 표면 거칠기: | Ra≤0.15μm, Rz≤1.5μm |
| 강조하다: | PCB lamination press plate corrosion resistant,CCL lamination German steel plate,Dura420 high-precision laminated steel plate |
||
제품 설명
PCB & CCL Dura420 Ultra-Stable High-Precision Lamination Press Plate
The ESSP-D420 lamination press plate is manufactured with premium imported German Dura420 stainless steel, specifically developed for PCB and CCL mass production lamination processes. This professional-grade plate delivers extremely stable and consistent pressing performance in long-term cyclic operations.
Core Product Advantages
German Dura420 Premium Press Plate - Ultra-low high-temperature warpage, 5-8 years long lifespan, energy-saving & high-precision solution for PCB & CCL lamination
Key Features
- Premium imported German Dura420 stainless steel with high-purity material properties
- Ultra-stable and consistent pressing effect with zero abnormal deformation during high-temperature lamination
- Minimum warpage degree under continuous high-temperature conditions for precise board dimension tolerance
- Ultra-long service life up to 5-8 years, reducing replacement frequency and material costs
- Excellent thermal conductivity and stable thermal expansion coefficient for energy savings
- High hardness and outstanding corrosion resistance for long-term cyclic use
- Compatible with all types of industrial lamination steel plate washing machines
Technical Specifications
Basic Parameters
| Steel Material | Imported German Dura420 stainless steel |
| Standard Thickness | 1.0, 1.2, 1.5, 1.6, 1.8, 2.0 mm |
| Service Life | 5-8 years of long-term service life |
Standard Sizes
PCB Lamination Press Plate (L × W, mm):
1500×1295, 1300×800, 1295×787, 1295×1613, 1295×1143, 1295×787, 1285×750, 1280×1120, 1280×1070, 1280×970, 1270×1118, 1270×1070, 1143×660, 673×571, 660×508, 24"×28"
1500×1295, 1300×800, 1295×787, 1295×1613, 1295×1143, 1295×787, 1285×750, 1280×1120, 1280×1070, 1280×970, 1270×1118, 1270×1070, 1143×660, 673×571, 660×508, 24"×28"
CCL Lamination Press Plate (L × W, mm):
1910×1270, 2210×1270, 2220×1270
1910×1270, 2210×1270, 2220×1270
Performance Parameters
| Parameter | Dura420 Mass-Lam Plate | Dura420 Pin-Lam Plate |
|---|---|---|
| Thickness | 1.0-2.0mm | 1.0-2.0mm |
| Width | ≤1300mm | ≤1300mm |
| Length | ≤2410mm | ≤2410mm |
| Thickness Tolerance | ±0.10mm | ±0.10mm |
| Surface Roughness | Ra≤0.15μm, Rz≤1.5μm | Ra≤0.15μm, Rz≤1.5μm |
| Warpage Degree | ≤3mm/M | ≤3mm/M |
| L/W Size Tolerance | ±1mm | ±1mm |
| Yield Strength | ≥1175 N/mm² | ≥1175 N/mm² |
| Tensile Strength | ≥1400 N/mm² | ≥1400 N/mm² |
| Hardness HRC | 50HRC±2 | 50HRC±2 |
| Work Temperature | ≤400℃ | ≤400℃ |
| Thermal Conductivity | ≥25W/MK at 300℃ | ≥25W/MK at 300℃ |
Usage Note: The steel plate becomes slightly thinner after repeated pressing cycles. Stop using when thickness is below 1.3mm; plates between 1.3mm-1.6mm must be free of deformation and warpage to ensure lamination accuracy.
